Pulsed Nd:YAG lasers with cavity aperture for singe transversal mode

1. Pulsed Nd:YAG laser model LQ529C:
Beam distribution TEM00 (singe transversal mode);
PRR 10 Hz;
Output beam diameter about 2.3 mm (cavity aperture diameter about 2.3 mm);
Output energy at 1064 nm not less than 25 mJ (>/=25 mJ);
M2 not less than 1.7 (>/=1.7);
Linewidth at 1064 nm - not more than 1 cm-1.

request a quote

2. Pulsed Nd:YAG laser model LQ629-100:
Beam distribution TEM00 (singe transversal mode);
PRR 10 Hz;
Output beam diameter about 5 mm;
Output energy at 1064 nm not less than 50 mJ (>/=50 mJ);
M2 not less than 1.7 (>/=1.7);
Linewidth at 1064 nm - not more than 1 cm-1.

request a quote



Pulsed Nd:YAG lasers with 1064 nm singe transversal mode output

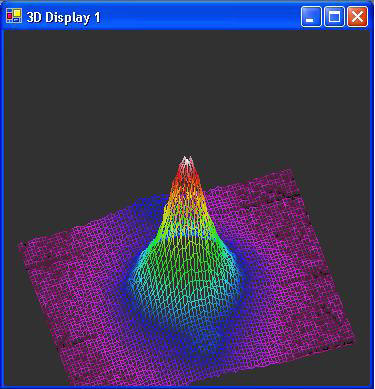

Typical near field distribution for singe transversal mode (TEM00).
