Reef-M real-time scanning autocorrelator for microscopy - request a quote - pdf brochure

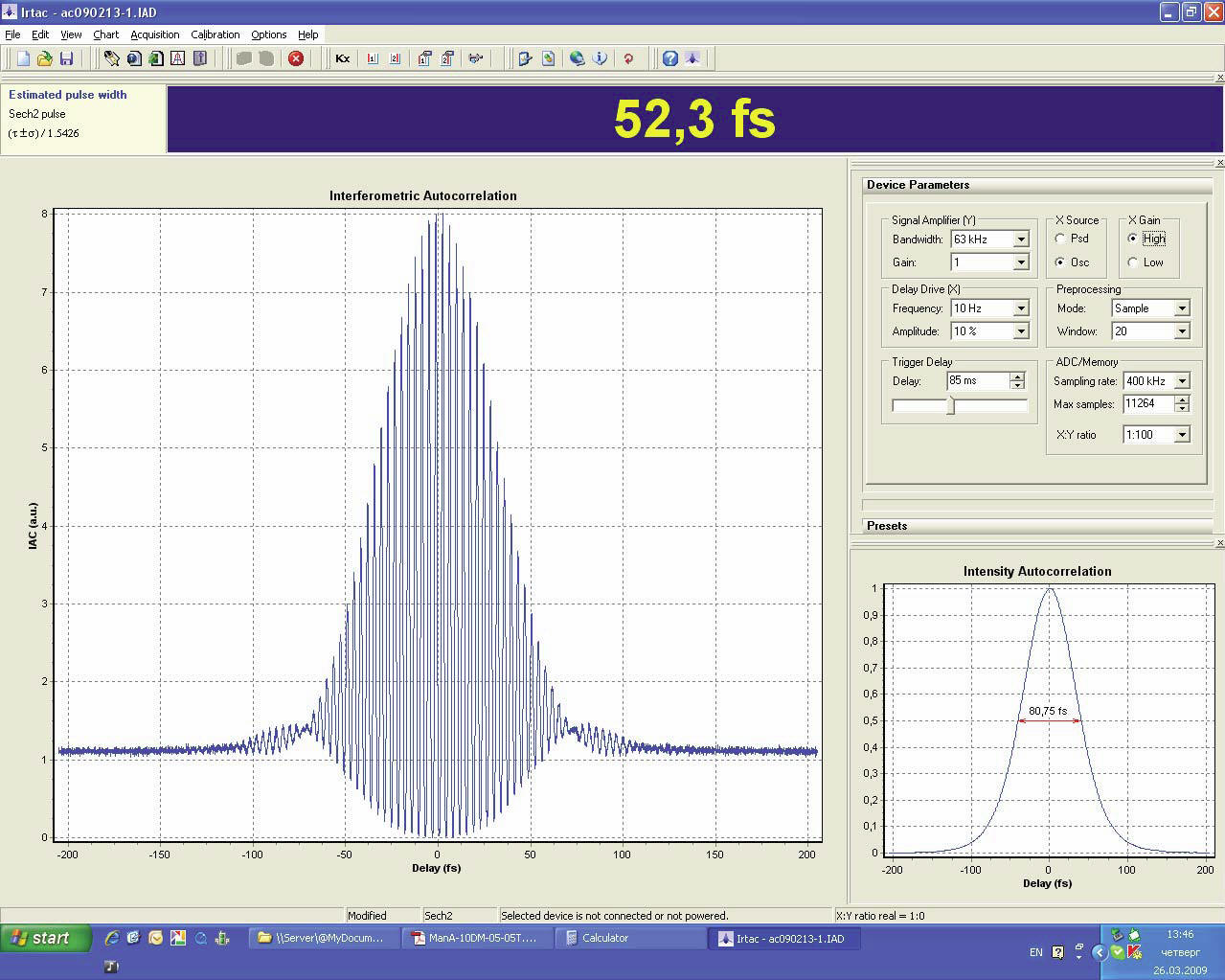

Collinear (interferometric) autocorrelation
Wavelength range, nm: 700-1300*
Pulse duration range, fs: 10-6000
Input repetition rate: >10 kHz
Sensitivity: <100 mW^2
Input polarization: horizontal (vertical upon request)
Scanning rate, Hz: 0.1-20
Linear distortion, %: <1%
Necessary equipment: PC with USB or oscilloscope
Photodetectors: internal and external, switchable
Dimensions, mm:
210x164x132 (opical head)
225x190x45 (electronic unit)
70x55x16.5 (external photodetector)
* - additional interchangeable photodetector units for range extension are available
Acquisition and analysis PC software included

Price USD18,000.-
