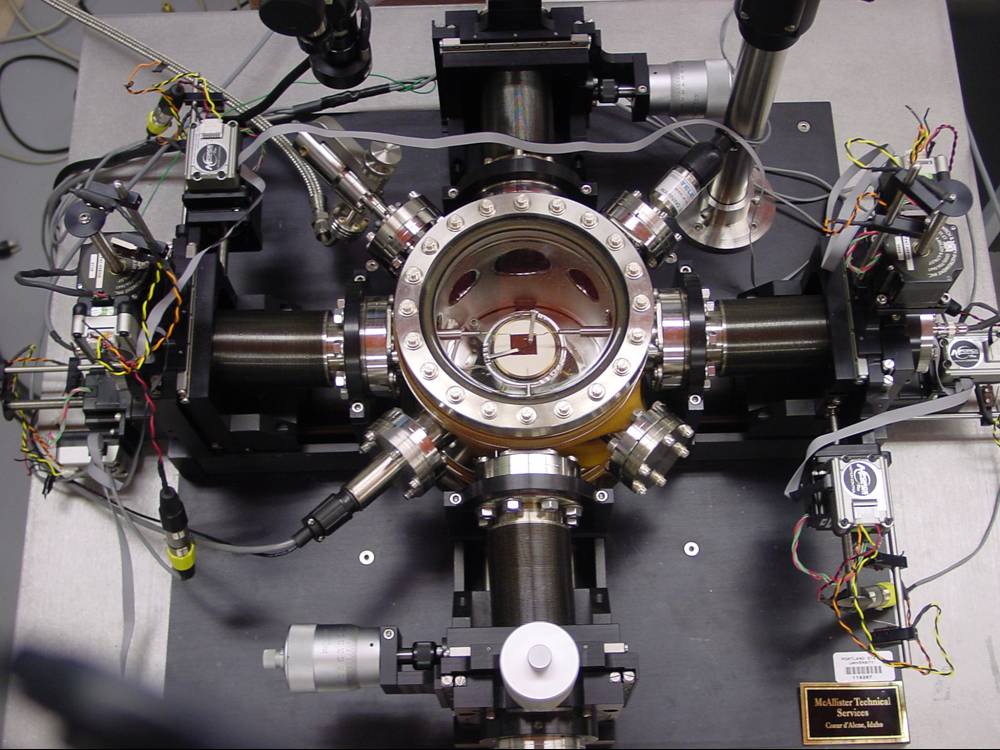

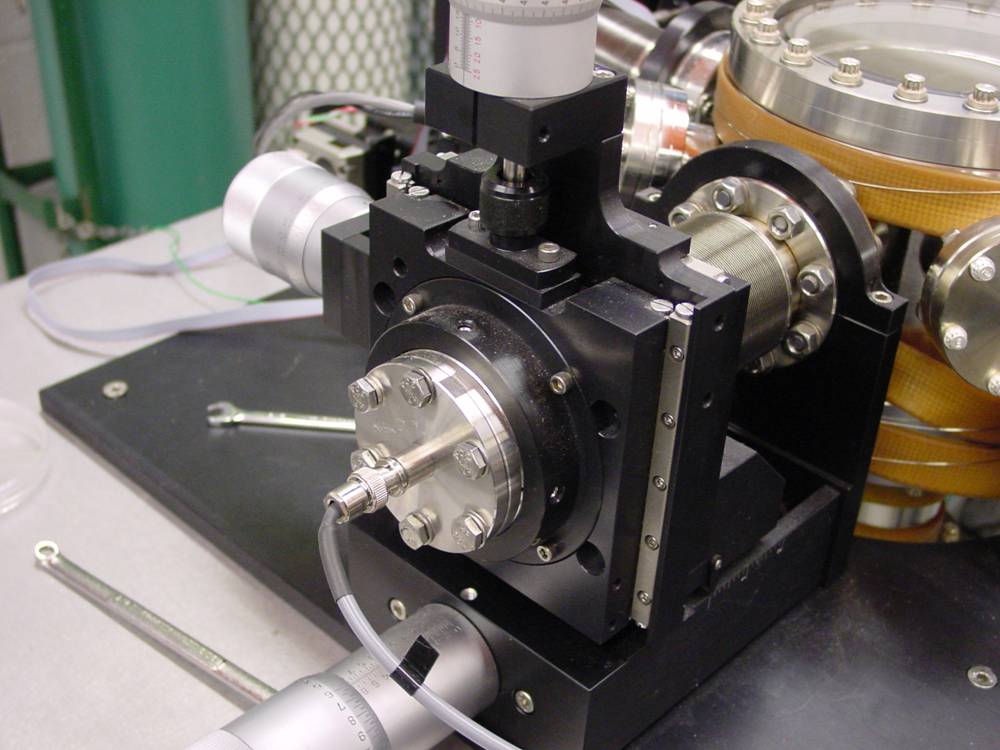

Trestles CW Opus laser illuminates carbon nanotube field effect transistors and measure it's electrical characteristics. This is all done in an ultra high vacuum (UHV) chamber. Trestles CW Opus laser has a fiber-coupled output: single-mode fiber 700-1300 nm, 4 um, 1 m FC-FC and provides output power at fiber output: >10 mW@700-1000 nm
TRESTLES CW OPUS Specifications (request
a quote)
Ti:Sapphire CW oscillator
Tuning range, nm: 700-1000*
Output power (free-space), mW: 300 (@800 nm, 3W pump)
Bandwidth: <45 GHz
<20 GHz (with 1 etalon**)
<2 GHz (with 2 etalons**)
Spatial mode: TEMoo
Divergence: <2 mrad
Polarization: horizontal
* - manually controlled birefringent filter for
wavelength tuning is included
** - not included, please see below
Fiber-coupled output: single-mode fiber 700-1300 nm,
4 um, 1 m FC-FC
Output power at fiber output: >10 mW@700-1000 nm
OPUS DPSS PUMP LASER, 3 W OUTPUT
POWER 3 W
WAVELENGTH 532 NM
BEAM SIZE 2.0 MM
SPATIAL MODE TEM00
M SQUARED < 1.1
POWER STABILITY < 0.4 % RMS
NOISE < 0.4% RMS
Accessories
3BRF-TM Upgrade - Upgrade to motorized 3-plate birefringent filter for USB
wavelength tuning
Thick (thin) etalon with mount (manual tuning)
Thick (thin) etalon with mount (step motor controlled tuning)
Closed-loop chiller
Fiber-coupled output: single-mode fiber 700-1300 nm, 4 um, 1 m FC-FC
Output power at fiber output: >10 mW@700-1000 nm
Trestles CW Opus continuum wave Ti:Sapphire laser with built in 3 Watt DPSS laser
Dimensions of Trestles CW Opus continuum wave Ti:Sapphire laser with built in 3 Watt DPSS laser
The Trestles CW Opus weight is about 20 kg.
DPSS pump laser control unit
| Features * RS232 control * large LCD * advanced funtionality * analogue modulation * power failure LED * emission status LED * remote interlock * full switch-mode operation * silent operation * compact, low-profile design
|
Supply voltage 12V dc frequency dc input Required Clearance * 100 mm at rear Connections mains 12V dc input modulation 9 way D-type RS232 9 way D-type umbilical 25 way D-type Modulation input range 0 - 4 V rise time 10 usec bandwidth 0 - 30 kHz |
Chiller - weight 11 kg, W 220mm x D 333mm x H 390mm
