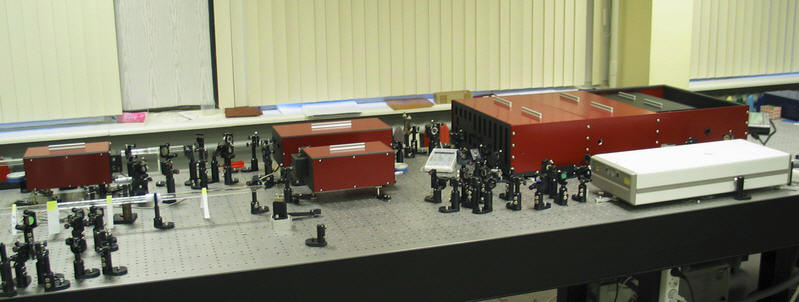

CORTES-E-1 Table –Top Terawatt repetitive rate laser system that uses Ti-Sapphire medium
and is based on the principle of chirped pulse amplification (CPA), with the following specifications:
Peak Power > 1TW
Pulse duration < 50 fs
Output pulse energy ≥ 50 mJ
Repetition rate 10 Hz
Wavelength Around 800 nm (fixed)
Energy stability Better than 5%
Beam quality M² ≤ 1.6
ns prepulse contrast ratio ≥ 105 : 1
ps prepulse contrast ratio ≥ 10³ : 1 @ 1 ps
≥ 105 : 1 @ 5 ps
≥ 10 6 : 1 @ 10-20 ps
Polarization of the final output beam Linear, Ellipticity < 10 -2

Units comprising the complete system:
Trestles Finesse 4 Ti-Sapphire seed laser with DPSS pump laser, stretcher, Nd:YAG pump lasers, amplifiers,
compressor, and major electronic and optical subsystems.
The system has a modular design so that it can be upgraded in future.
Optical table for the laser system is 3m x1.2m.
Pump laser for oscillator: 4W@532 nm
Pump laser for the first stage (8-pass MPA): 50 mJ@ 10 Hz @ 532 nm
Pump laser for the second stage (MPA): 500 mJ@ 10Hz@ 532nm
Oscillator: kerr-lens mode-locked femtosecond oscillator <30fs@780-
Stretcher: all-reflective one-grating stretcher (output pulse duration - >300 ps for
<30 fs input pulse)
1st stage: 8-pass amplifier with wedge shaped TiS crystal output energy >2 mJ
2nd stage: 4 -pass amplifier with Brewster cut TiS crystal output energy - >100mJ
Compressor: standard all-reflective two-grating compressor 65% efficiency

The system will be installed at the customer facilities and its performance demonstrated as per ordered specifications by the manufacturer.
A list of spare components that may be required over a period of two years can be quoted separately.
Diagnostic devices and any other optional devices applicable for the systems be be quoted separately.

A user manual containing technical details such as optical layouts, circuit diagrams, component details and operations/servicing instructions should be supplied with the system.
Warranty: Warranty on each subsystem (seed laser, pump lasers and electronic components), and the system as a whole is 1 year and 90 days warranty for the optical components. In case of any failure/malfunctioning during the warranty period, the system/ sub-system should be replaced / repaired free of charge.

Multi-Terawatt Ti:Sapphire lasers

Femtosecond Two-stage Amplifier System Wedge-XL
Operation wavelength: 800 ± 10 nm
Output pulse duration: < 70 fs
Output energy: 100 mJ
Pulse repetition rate: 10 Hz

Femtosecond Terawatt Ti:sapphire Laser System Teahupoo MPA-XL
Output pulse wavelength: 810 ± 10 nm
Pulse width after compressor: <40 fs
Recommended maximum pulse energy after air compressor: 60 mJ (1.5 TW at 40 fs)
Maximum pulse energy of amplified stretched pulses: 0.2 J
Pulse repetition rate: 10 Hz
Output spectral bandwidth: 30 nm
Output beam diameter: 15 mm
Output beam quality: M2<2
Contrast: >106 for ns time scale
Compressor efficiency: 65%
Output beam polarization: Horizontal

CORTES-E-1 Table –Top Terawatt repetitive rate laser system
Peak Power > 1TW
Pulse duration < 50 fs
Output pulse energy ≥ 50 mJ
Repetition rate 10 Hz
Wavelength Around 800 nm (fixed)
Energy stability Better than 5%
Beam quality M² ≤ 1.6
ns prepulse contrast ratio ≥ 105 : 1
ps prepulse contrast ratio ≥ 10³ : 1 @ 1 ps
≥ 105 : 1 @ 5 ps
≥ 10 6 : 1 @ 10-20 ps
Polarization of the final output beam Linear, Ellipticity < 10-2

Table Top Ultra High Intensity Ti:Sapphire Laser Cortes-E
Pulse Length: < 60 fs
Energy per pulse: 100 mJ
Repetition rate: 10 Hz
Contrast ratio: > 106:1
Stability: < 3 %
Tuning range: 790-810 nm fro 50 fs pulses
Gaussian beam: M2 < 1.1
Beam diameter: 4 mm after focusing

Cortes-800 40 Terawatt Laser System
The new Cortes-800 amplification system provides terawatt peak power in a compact package. Seeded with our compact Trestles Ti:sapphire oscillator, the Cortes-800 consists of three chirped pulse amplification (CPA) stages that fit on a single optical table. Pulse energies of greater than 1.5 J are achieved before compression in a vacuum chamber. Active feedback and pulse shaping allows the Cortes-800 to produce extremely high contrast ratios, and sub 30 fs output pulses with peak powers greater than 40 terawatts. Fully integrated timing and control software make the Cortes- 800 a perfect tool for the study of high energy laser- matter interaction. The initial stage of the system consists of the TRESTLES-20 femtosecond oscillator pumped with a 532 nm, 6 W DPSS laser. Generated 20 fs pulses are temporally stretched with Offner triplet technology to 400 ps. To pre-correct for spectral changes incurred as pulses pass through the system, the stretched pulses pass through an acousto-optic programmable dispersive filter. The AOPDF compensates for gain narrowing and wavelength shifting in the amplification stages and for dispersion due to propagation through system components. Before insertion into the first amplification stage, a PISMO Pockels cell pulse picker is used to gate single pulses at a repetition rate of 10 Hz from the oscillator pulse train. The stretched, shaped and picked pulses are then amplified by a WEDGE-10 multi-pass amplifier, providing high contrast ratio. After the initial amplification stage the pulses pass through a spatial filter to increase the beam diameter and improve the spatial quality of the beam. A second PISMO Pockels cell is used to increase the temporal contrast ratio and to protect STAGE-1 from back reflections. The spatially expanded pulses pass through STAGE-2, a 5-pass multi-pass amplifier. Another spatial filter is used to clean the beam before the final amplifying stage, STAGE- 3. The 4-pass power amplifier increases the pulse energy to 1,500 mJ per pulse. Pulse compression takes place within a sealed vacuum chamber with a dielectric grating compressor. Grating position, and thus final pulse duration, are adjusted with the help of computer controlled motorized stages. A deformable mirror (DM) coupled with a Shack-Hartmann wavefront sensor is used to correct wavefront distortions, resulting in a 0.8 Strehl ratio.

Jaws Laser System Cr:Forsterite Multi-Terawatt Amplified Laser - price estimate
1250nm, 200ps, 10Hz, 1 J before compression
1250nm, 100fs, 10Hz, 500mJ --- 50fs, 10Hz, 250mJ - after compression

Cortes-K Femtosecond Seed Laser for Petawatt KrF Excimer Laser

Cortes-O 200 TW Femtosecond Laser CPOPA
